SPI SSD1322 OLED Screen
⚠️ Important — check your screen before wiring
A small number of SSD1322 OLED screens were shipped with a 000Ω resistor fitted in the wrong position. If left uncorrected, this can prevent the display from working correctly.
Before connecting the screen to your Raspberry Pi or applying power, take a moment to inspect the board.

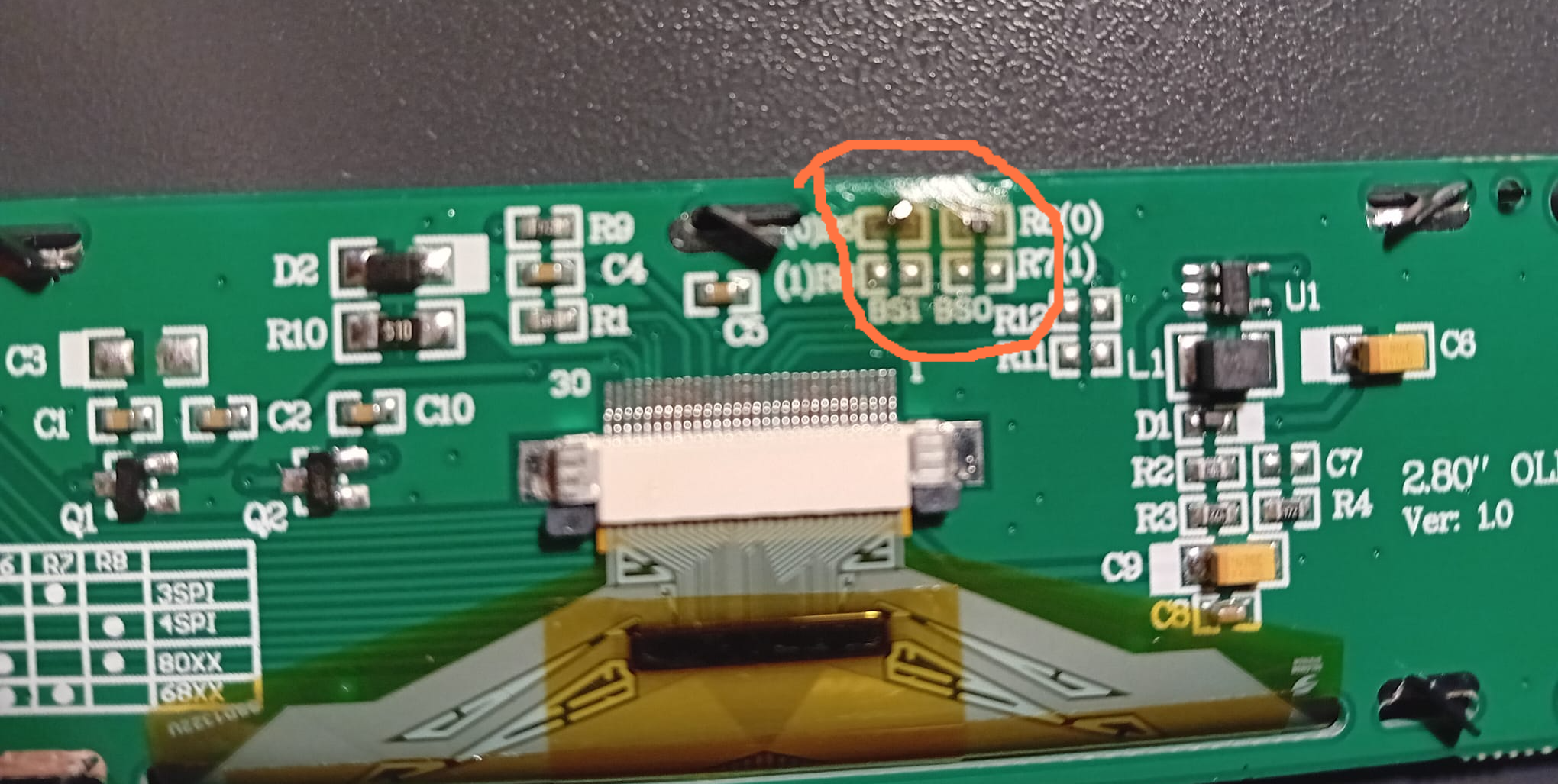

What the board should look like
- The 000Ω resistor should be fitted at R5

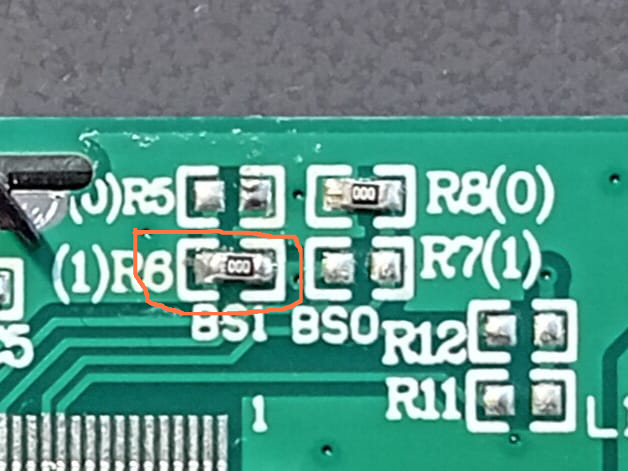

- If the resistor is fitted at R6, this is incorrect
- An empty R8 position is normal
If you’re unsure, compare your board with a known-good reference image before continuing.
How to correct the issue
If the resistor is fitted at R6, the fix is straightforward provided you are comfortable using a soldering iron.
- Apply heat to the solder at R6 and remove the misplaced resistor (it will be bridging two pads)
- You may move the resistor to R5, but this is optional
- The simplest solution is to apply a small solder bridge across the two pads at R5
Either method restores the correct connection and resolves the issue.

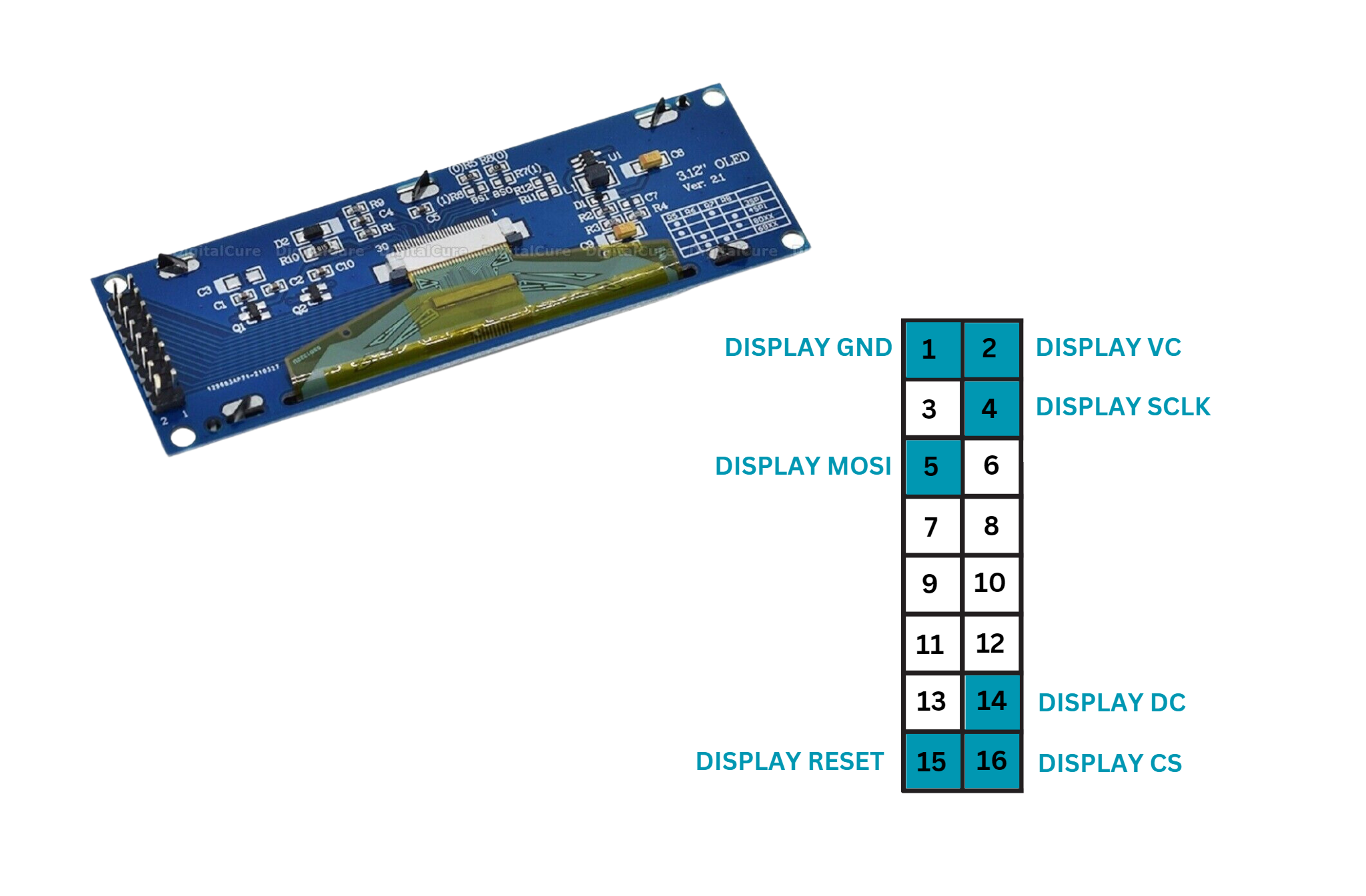

Screen pinout & wiring
- Use red wire for VCC
- Use black wire for GND
- Double-check pin orientation before powering on
Most display issues are caused by wiring mistakes — take your time and verify each connection.
